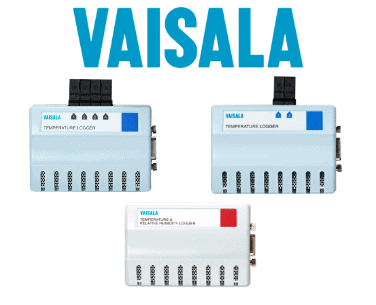

Vaisala Logger Rental
Choose rental Vaisala loggers for a validation system that is a powerful, easy-to-use alternative to thermocouple-based equipment and bulky data acquisition systems.
Vaisala loggers are a versatile and reliable replacement for chart recorders and bulky data acquisition systems, ideal for mapping/validation, the data loggers provide high accuracy humidity and/or temperature measurement and recording.
A complete solution, our mapping tools eliminate costly downtime from pre- and post-calibration and deliver accurate, validatable results.
Vaisala's humidity and temperature validation solution is the easiest, most cost-effective method for mapping equipment, areas, and systems in FDA regulated and GxP environments.
With accredited temperature and humidity calibration services and quality customer support, the data loggers offer a completely integrated solution for all your continuous monitoring and reporting or validation/ mapping applications.
Validatable Relative Humidity Logger DL2000
| Type of Sensor | Integrated high-accuracy capacitive polymer RH sensor |
|---|---|
| Initial Accuracy | +/-1%RH over 10%RH to 90%RH at +20ºC to +30ºC |
| +/-2%RH over 10%RH to 90%RH at -20ºC to +70ºC | |
| Operating range | -35°C to 85°C (-31°F to 185°F) and |
| 0% RH to 100% RH | |
| Resolution | 0.05% RH |
| 1-year Accuracy | +/-2% RH over 10% RH to 90% RH at +20°C to +30°C |
| +/-3% RH over 10% RH to 90% RH at -20°C to +70°C | |
| Calibration verification | Annual (recommended) |
Initial Accuracy | +/-0.10ºC over +20ºC to +30ºC |
|---|---|
| +/-0.15ºC over -25ºC to +70ºC | |
| Operating range | -35°C to 85°C (-31°F to 185°F) |
| Resolution | 0.02°C at 25°C |
| 1-year Accuracy | +/-0.15°C over 20°C to +30°C |
+/-0.25°C over -25°C to +70°C |
Memory Type | Non-volatile EEPROM |
|---|---|
| Data Sample Capacity | 35,100 12-bit samples |
| Memory Modes | User-selectable: Wrap when memory full (FIFO), or Stop when memory full. |
| Memory Protection | Data retention > 20 years backup without power. |
| Sampling Rates | User-selectable (in intervals of 10 seconds) from once every 10 seconds to once a day. |
Size | 2.8 x 2.1 x 0.8" (71x53x20mm); |
|---|---|
| 65g (2.4 oz) | |
| Operating Range | -35°C to 85°C (-31°F to 185°F) and |
| 0% RH to 100% RH | |
| Interfaces | RS-232 serial, USB, Ethernet, PoE, WiFi network interface available. |
| Mounting | Magnetic strips; 3M Dual Lock™ fasteners |
| PC Software | Designed for use with vLog Software and Veriteq viewLinc (for on-going monitoring & alarming) |
| Clock | Accuracy: +/- 1 min./month at -25°C to +70°C |
| Electromagnetic Compatibility | FCC Part 15 and CE |
| Power Source | Internal lithium battery with life of 10 years at 1 minute sampling rate. |
Validatable 2 Channel Temp Logger DL1016
Initial Accuracy | +/-0.25ºC over -90ºC to +50ºC |
|---|---|
| +/-0.15ºC over -25ºC to +70ºC | |
| Operating range | -90°C to +70°C (-139°F to 158°F) |
| Resolution | 0.01°C at +25°C |
| 1-year Accuracy | +/-0.35°C over -90°C to +30°C |
+/-0.25°C over -25°C to +50°C |
Memory Type | Non-volatile EEPROM |
|---|---|
| Data Sample Capacity | 68 600 16-bit samples |
| Memory Modes | User-selectable: Wrap when memory full (FIFO), or Stop when memory full. |
| Memory Protection | Data retention > 20 years backup without power. |
| Sampling Rates | User-selectable (in intervals of 10 seconds) from once every 10 seconds to once a day. |
Size | 2.8 x 2.1 x 0.8" (71x53x20mm); |
|---|---|
| 65g (2.4 oz) | |
| Operating Range | -95°C to +70°C (-139°F to 158°F) |
| 0% RH to 100% RH | |
| Interfaces | RS-232 serial, USB, Ethernet, PoE, WiFi network interface available. |
| Mounting | Magnetic strips; 3M Dual Lock™ fasteners |
| PC Software | Designed for use with vLog Software and Veriteq viewLinc (for on-going monitoring & alarming) |
| Clock | Accuracy: +/- 1 min./month at 0 to +50°C |
| Electromagnetic Compatibility | FCC Part 15 and CE |
| Power Source | Internal lithium battery with life of 10 years at 1 minute sampling rate. |
Validatable 4 Channel Temperature Logger DL1416
Initial Accuracy | +/-0.25ºC over -90ºC to +50ºC |
|---|---|
| +/-0.15ºC over -25ºC to +70ºC | |
| Operating range | -90°C to +70°C (-139°F to 158°F) |
| Resolution | 0.01°C at +25°C |
| 1-year Accuracy | +/-0.35°C over -90°C to +30°C |
+/-0.25°C over -25°C to +50°C |
Memory Type | Non-volatile EEPROM |
|---|---|
| Data Sample Capacity | 68 600 16-bit samples |
| Memory Modes | User-selectable: Wrap when memory full (FIFO), or Stop when memory full. |
| Memory Protection | Data retention > 20 years backup without power. |
| Sampling Rates | User-selectable (in intervals of 10 seconds) from once every 10 seconds to once a day. |
Size | 2.8 x 2.1 x 0.8" (71x53x20mm); |
|---|---|
| 65g (2.4 oz) | |
| Operating Range | -95°C to +70°C (-139°F to 158°F) |
| 0% RH to 100% RH | |
| Interfaces | RS-232 serial, USB, Ethernet, PoE, WiFi network interface available. |
| Mounting | Magnetic strips; 3M Dual Lock™ fasteners |
| PC Software | Designed for use with vLog Software and Veriteq viewLinc (for on-going monitoring & alarming) |
| Clock | Accuracy: +/- 1 min./month at 0 to +50°C |
| Electromagnetic Compatibility | FCC Part 15 and CE |
| Power Source | Internal lithium battery with life of 10 years at 1 minute sampling rate. |
Minimum rental period from just one week
Supplied with UKAS accredited calibration certificate
Supplied with optional PC and software
vLog - Validatable Data Logger Software
ViewLinc Software
