ULT Freezer

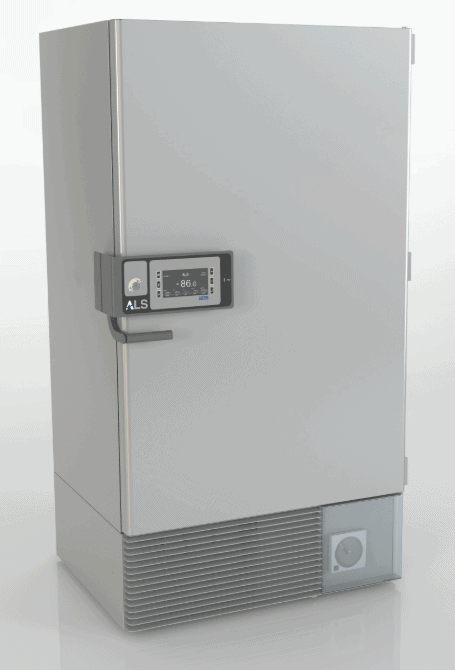

TwinCool Frequency Conversion ULT Freezer
We are thrilled to offer the cutting-edge Haier ULT freezer range. Our TwinCool ULT freezer sets the standard with its innovative features, including frequency conversion compressors, hydrocarbon refrigerants (HC), and dual refrigeration system technology. This combination ensures not only top-notch sample security but also remarkable energy efficiency and sustainability. Trusted by hospitals, disease control centers, life science and medical research facilities, bioengineering labs, pharmaceutical companies, and other enterprise laboratories, our product is the ultimate solution for preserving valuable samples with precision and reliability.
We have several ULT freezer models available, please explore the technical data below, download a data sheet, or get in touch to find out more.
Key product features
World-leading energy saving refrigeration technology
Intelligent frequency conversion technology and HC refrigeration system delivers a 50% reduction in energy usage when compared to traditional HFC refrigeration systems, using just 12kWh/day.
Large loading capacity
Maximum Capacity: 600 boxes (2 inch boxes with 10*10 configuration) 60,000 samples can be stored.
Optional IoT Module for monitoring in real time
The optional IoT monitors the operating status of the equipment in real time. Equipped with multiple alarm functions and a self-diagnostics system to identify and warns users to ensure sample safety.
Low noise design
Optimised systems and noise-reducing cabinet design lower noise out to 53dB for a quieter working experience.
Dual refrigeration system, double safety and optimal reliability
Double independent hydrocarbon refrigeration system design, each system can maintain -80ºC ensuring the safety of stored samples.
ULT Freezer specifications
Model | Cabinet Type | Refrigerant | Temperature Range (ºC) | Power Supply (V/Hz) | Capacity (L/Cu.Ft) | Exterior Dimensions (W*D*H)(mm) | Shelves / Inner Doors | Controller |
DW-86L578BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 578/20.4 | 895*998*1980 | 3/4 | LCD touchscreen |
DW-86L728BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 728/25.7 | 1046*998*1980 | 3/4 | LCD touchscreen |
DW-86L828BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 828/29.2 | 1145*998*1980 | 3/4 | LCD touchscreen |
