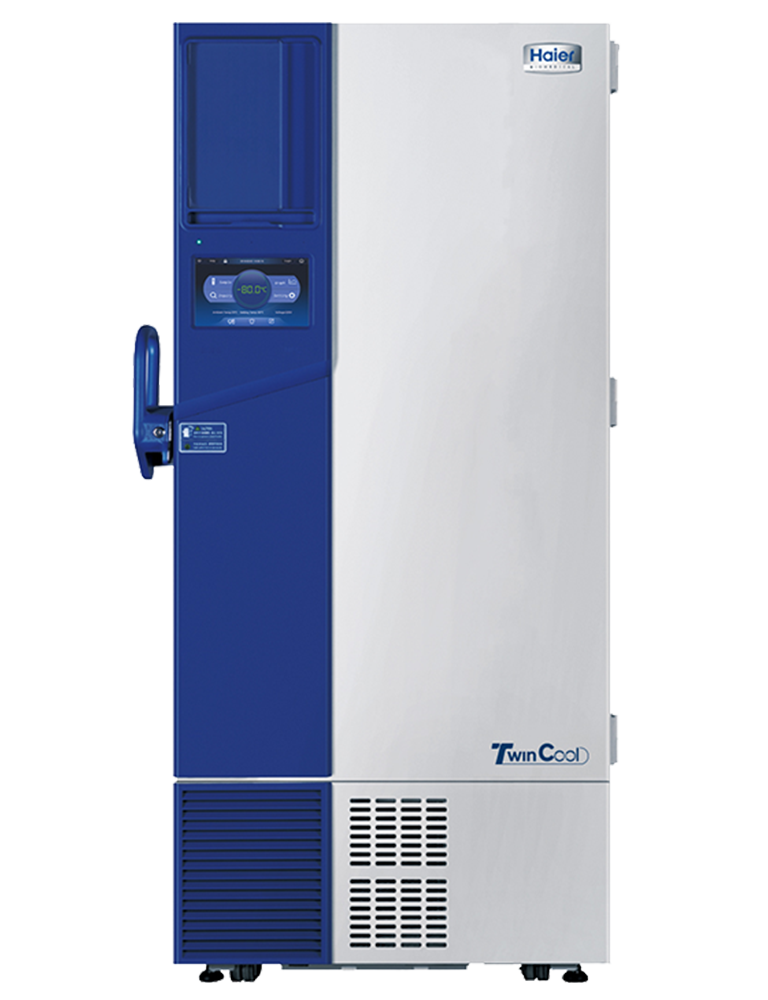

ULT Freezer
ULT Freezer Products by Haier
Frequency Conversion embedded in a ULT Freezer
Setting the standard in ULT freezer storage is Haier Biomedical. The opted-for ultra-low-temperature unit is deployed across hospitals, medical research and development, pharmaceutical manufacturing, stability storage and many other applications. The ULT freezer from Haier combines frequency conversion compressors with hydrocarbon refrigerants (HC) to deliver high-quality sample security.
The ULT Freezer reaches temperatures as low as -86°C and boasts a variety of features which give the user peace of mind that biological samples are safeguarded. From a multiple safety lock to multilevel alarm systems, this ULT freezer is smart by design.
Haier's ULT Freezer Solution
Smart by Design
This range of ULT freezers has been designed and developed with energy conservation and environmental friendliness in mind. The system houses high-efficiency cooling fans and compressors, combining this with the HCs mentioned above, and your lab can achieve energy savings whilst maintaining sample stability.
Features of the ULT Freezer
Dual refrigeration system, double safety and optimal reliability
Double independent hydrocarbon refrigeration system design, each system can maintain -80ºC ensuring the safety of stored samples.
World-leading energy-saving refrigeration technology
Intelligent frequency conversion technology and HC refrigeration systems deliver a 50% reduction in energy usage when compared to traditional HFC refrigeration systems, using just 12kWh/day in this ULT freezer.
Large loading capacity
Maximum Capacity: 600 boxes (2 inch boxes with 10*10 configuration) 60,000 samples can be stored.
Optional IoT Module for monitoring in real time
The optional IoT monitors the operating status of the equipment in real time. Equipped with multiple alarm functions and a self-diagnostics system to identify and warns users to ensure sample safety.
Low noise design
Optimised systems and noise-reducing cabinet design lower noise out to 53dB for a quieter working experience.
Discover the ULT Freezer specifications
Model | Cabinet Type | Refrigerant | Temperature Range (ºC) | Power Supply (V/Hz) | Capacity (L/Cu.Ft) | Exterior Dimensions (W*D*H)(mm) | Shelves / Inner Doors | Controller |
DW-86L578BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 578/20.4 | 895*998*1980 | 3/4 | LCD touchscreen |
DW-86L728BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 728/25.7 | 1046*998*1980 | 3/4 | LCD touchscreen |
DW-86L828BPST | Upright | HC | -40~-86 | 220~240/50/ 60 | 828/29.2 | 1145*998*1980 | 3/4 | LCD touchscreen |
Looking for a bulk ULT Freezer?
We also stock a variety of other brands that lead in ultra-low temperature solutions. If you're unsure whether the Haier unit is right for you, get in touch with us to discuss your unique ULT freezer requirements and we'll provide unbiased guidance and support to deliver a chamber that is specific to your needs.

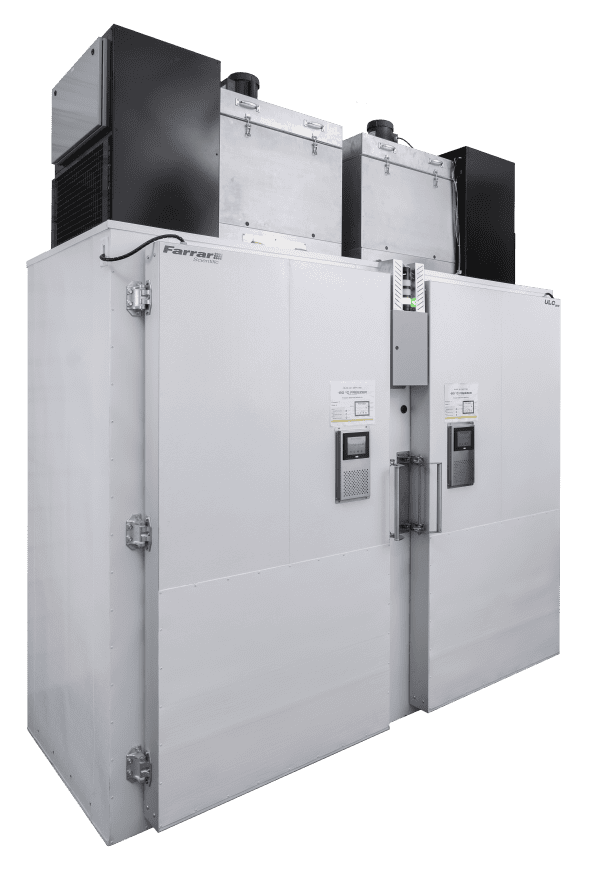

It's part of the Withnell Way! Other ULT freezer providers include the FARRAR bulk ultra low temperature freezer.
Why choose a new ULT freezer?
In our recent blog, we discuss the benefits that purchasing a new ULT freezer can have on your sustainability strategy, carbon footprint and overall energy consumption. Find out why you should consider a new ULT storage chamber to reduce costs.
