Pressure Data Loggers
High pressure and temperature data loggers from DataTrace
Precise pressure data loggers
DataTrace data loggers are engineered specifically for extreme environments such as steam, ethylene oxide and other various sterilization processes and chambers, heat tunnels, retorts, smokehouses, food processing and more.
These pressure data loggers can be deployed for both high pressure and temperature data logger applications, specifically autoclaves/steam sterilization, retort sterilization, dry heat ovens and tunnels, curing processes, food pasteurization and several other processes
Sectors which rely on accurate temperature measurements to ensure product/patient safety, integrity and reliability can opt for DataTrace's pressure data loggers.
The DataTrace products are used globally by leading manufacturers in a range of industries including critical manufacturing, food process, quality control and transportation applications. The product range includes options for data loggers for temperature, humidity and pressure measurement.
Self contained, wireless data loggers
FDA 21 CFR Part 11 Compliant
Intrinsically safe
Powerful, multi-functional software

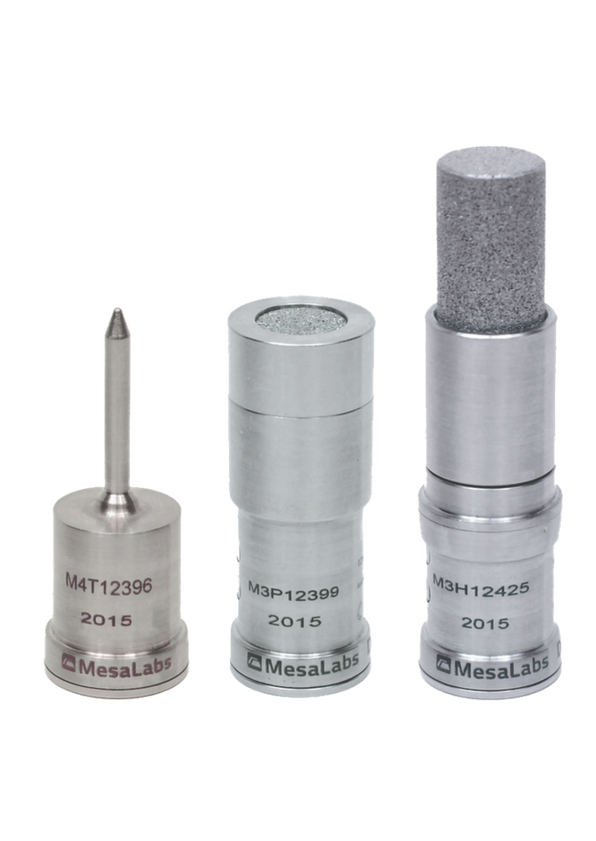

Pressure and Temperature Data Loggers: MPIII & MPRF
MPIII Temperature Data Logger-compact size ideal for cans, pouches and more
Adaptable to almost any situation, MPIII Temperature Loggers measure less than an inch (without probe or Thermal Pack). Their small size increases versatility and precision by allowing you to position loggers very near or inside monitored items. From chilling, freezing and room temperature to pasteurization, EtO sterilization and depyrogenation, MPIII Temp, HiTemp and HiTemp EXT loggers provide accurate data over a wide range with remarkable ease.
Operating Temperature | -20°C to +400°C (MPIII HiTemp EXT) |
Temperature Accuracy | ± 0.1°C (MPIII Temp) ± 0.5°C (MPIII HiTemp) |
Size | Width: 18mm x Length: 20mm |
Weight | 15 grams |
Material | 316 stainless steel and sapphire IR windows |
Memory | |
16,000 time/temperature observations | |
Sample Rates | Operator programmable (1 second to 1 hour intervals) | Resolution |
0.001°C |
Calibration | Factory calibrated (NIST traceable) |
Battery Type | Lithium (field-replaceable) |
Clock Accuracy | 26 seconds per 24 hours |
Certification | ATEX (for intrinsic safety) |
MPRF Temperature Data Logger-Wide range of applications including EO sterilisation
DataTrace® MPRF Temperature data loggers deliver the data from chilling, freezing and room temperature to pasteurization, EO sterilization and depyrogenation. MPRF Temperature data loggers provide accurate data over a wide range with remarkable ease; from as low as -80ºC to +400ºC. This makes it easy to monitor processes across a wide spectrum of temperatures in a variety of different industries and products.
Operating Temperature | -80°C to +140°C* HiTemp***: +100°C to +360°C w/Thermal Pack HiTemp EXT***: -40°C to +400°C w/Thermal Pack |
Temperature Accuracy | -80°C to -40°C: ±0.3°C -40°C to +140°C: ±0.1°C |
Range | 100 feet (30 meters) Line of Sight |
Radio Frequency | 2.4 GHz range ISM Band |
Size | Width: | 23.2mm |
Length: | 94mm | |
Weight | 66 grams | |
Material | 316 stainless steel and ULTEM or PCTFE |
Memory | 8,192 time/temperature observations or 16,384 observations in compressed data mode |
Sample Rates | Operator programmable |
• 5 sec. to 1 hr. interval with radio | |
• 1 sec. to 1 hr. interval without radio |
Calibration | Factory calibrated (NIST traceable) / Field calibration |
Battery Type | Type AA Lithium (field-replaceable) |
Battery Life | 6 months to 1 year (depending on usage) |
Clock Accuracy | 10 seconds per 24 hours (25ºC) |
Certification | ATEX (for intrinsic safety) |
FCC Class B digital device (Part 15 compliant) |

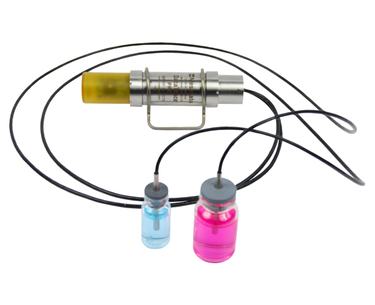

Micro Flex Temperature Data Logger-Lyophilzation, Freeze drying and applications with vials/bottles
The DataTrace Micro Flex logger’s design provides capability to measure surface and vial temp with one logger, or measure two vials or two surface temperatures at one time. The Micro Flex logger is a small, 2mm diameter probe that can fit inside vials for vial monitoring and allows the convenience of having real-time data as your process is happening.
Operating Temperature | -80°C to +140°C |
Temperature Accuracy | -80°C to -40°C: ±0.35°C -40°C to +140°C: ±0.2°C |
Size | Width: | 23.2mm |
Length: | 94mm | |
Weight | 170 grams | |
Material | 316 stainless steel and ULTEM or PCTFE |
Memory | 8,192 time/temperature observations or 16,384 observations in compressed data mode |
Sample Rates | Operator programmable |
• 5 sec. to 1 hr. interval with radio | |
• 1 sec. to 1 hr. interval without radio |
Calibration | Factory calibrated (NIST traceable) / Field calibration |
Battery Type | Type AA Lithium (field-replaceable) |
Battery Life | 6 months to 1 year (depending on usage) |
Clock Accuracy | 10 seconds per 24 hours (25ºC) |
Certification | ATEX (for intrinsic safety) |
FCC Class B digital device (Part 15 compliant) |

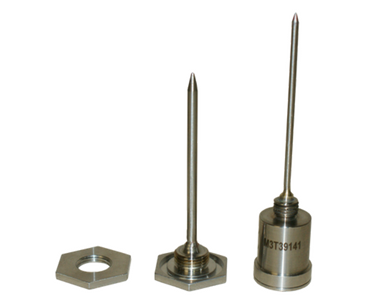

Thermowell Temperature Data Logger-Canning applications & SIP
The DataTrace MPIII Thermowell Data Logger allows for the addition/removal of the logger without compromising a sealed product or system. This logger is ideal for monitoring temperatures in a sealed container such as a can or bottle or for an SIP or CIP system at the typical monitor points where the Thermowell can be welded directly into piping allowing the logger to be easily removed and replaced when desired without shutting down the process.
Operating Temperature | -20°C to +140°C |
Temperature Accuracy | ±0.1°C |
Weight | 15 grams | |
Material | 316 stainless steel, sapphire IR windows |
Memory | 16,000 observations time/temperature observations |
Sample Rates | Operator programmable |
• 1 sec. to 18 hr. intervals |
Calibration | Factory calibrated (NIST traceable) / Field calibration |
Battery Type | Lithium (field-replaceable) |
Battery Life | 6 months to 1 year (depending on usage) |
Clock Accuracy | 26 seconds per 24 hours (25ºC) |
Certification | ATEX (for intrinsic safety) |

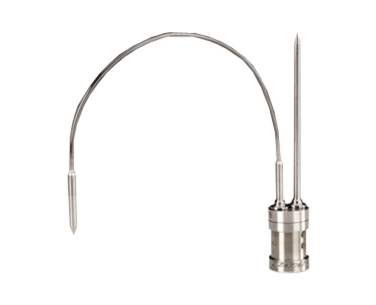

Dual Probe MPIII Temperature Data Logger-Measure 2 data points
The DataTrace Dual Probe Temperature Logger allows the user to measure 2 data points with a single logger. With 2 probes, this data logger is ideal for either collecting data from within a product and from the ambient conditions within a process or for collecting data from 2 separate areas of the product in question.
Operating Temperature | -20°C to +400°C (MPIII HiTemp EXT) |
Temperature Accuracy | ± 0.1°C (MPIII Temp) ± 0.5°C (MPIII HiTemp) |
Size | Width: 18mm x Length: 20mm |
Weight | 15 grams |
Material | 316 stainless steel and sapphire IR windows |
Memory | |
16,000 time/temperature observations | |
Sample Rates | Operator programmable (1 second to 1 hour intervals) | Resolution |
0.001°C |
Calibration | Factory calibrated (NIST traceable) |
Battery Type | Lithium (field-replaceable) |
Clock Accuracy | 26 seconds per 24 hours |
Certification | ATEX (for intrinsic safety) |
Needle Tip Temperature Data Logger-Autoclave sterilisation applications
Mesa Labs’ Needle Tip MPIII and Bendable Needle Tip MPIII data loggers allow for improved monitoring of product temperature during an autoclave sterilization cycle. For example, the sterilization of reusable metal trays. The Needle Tip loggers allow for access to tight and difficult to get to spaces. The loggers are so versatile they can be inserted into pharmaceutical vials through the rubber stopper.
Operating Temperature | -20°C to +400°C (MPIII HiTemp EXT) |
Temperature Accuracy | ± 0.1°C (MPIII Temp) ± 0.5°C (MPIII HiTemp) |
Size | Width: 18mm x Length: 20mm |
Weight | 15 grams |
Material | 316 stainless steel and sapphire IR windows |
Memory | |
16,000 time/temperature observations | |
Sample Rates | Operator programmable (1 second to 1 hour intervals) | Resolution |
0.001°C |
Calibration | Factory calibrated (NIST traceable) |
Battery Type | Lithium (field-replaceable) |
Clock Accuracy | 26 seconds per 24 hours |
Certification | ATEX (for intrinsic safety) |
Humidity Data Loggers: MPIII & MPRF
Micropack III Humidity Data Logger-compact for a range of applications
For processes that are sensitive to humidity, even small relative humidity (RH) changes can dramatically affect product production, storage and shipping – impacting everything from production time to product quality to cost. To achieve optimal conditions, you need precise humidity data. With the DataTrace® Micropack III (MPIII) Humidity Data Logger, you get it. The highly accurate MPIII Relative Humidity Data Logger monitors RH across the full range, from 0% to 100% at temperatures from 0°C (32°F) to 85°C (185°F).
Operating Temperature | 0°C to +85°C |
Operating Humidity | 0% to 100% RH (non-condensing) |
Temperature Accuracy | ± 0.1°C |
Humidity Accuracy | ±2% RH, 0% to 100% non-condensing at +25°C and +55°C (±5% RH in EtO) |
Size | Width: 18mm x Length: 66mm |
Weight | 48 grams |
Material | 316 stainless steel and sapphire IR windows |
Memory | |
8,000 time/temperature observations 8,000 time/humidity observations | |
Sample Rates | Operator programmable (1 second to 1 hour intervals) | Resolution |
0.01% RH |
Calibration | Factory calibrated (NIST traceable) |
Battery Type | Lithium (field-replaceable) |
Clock Accuracy | 26 seconds per 24 hours |
Certification | ATEX (for intrinsic safety) |
MPRF Humidity Data Logger-collect data in real-time
For processes that are sensitive to humidity, even small RH changes can dramatically affect product production, storage and shipping – impacting everything from production time to product quality to cost. To achieve optimal conditions, you need precise humidity data, preferably in real-time. With the DataTrace® MPRF Humidity Data Logger, you get it. The highly accurate MPRF Humidity Data Logger monitors RH across the full range, from 0% to 100% at temperatures from 0°C (32°F) to 85°C (185°F).
Operating Temperature | 0°C to +85°C |
Temperature Accuracy | ± 0.1°C |
Operating Humidity | 0% to 100% RH (non-condensing) |
Humidity Accuracy | ±2% RH non-condensing (±5% RH in EtO) |
Range | 100 feet (30 meters) Line of Sight |
Radio Frequency | 2.4 GHz range ISM Band |
Size | Width: | 23.2mm |
Length: | 142.5mm | |
Weight | 114 grams | |
Material | 316 stainless steel and ULTEM |
Memory | 4,096 time/temperature/humidity observations and 8,192 in compressed data mode |
Sample Rates | Operator programmable |
• 5 sec. to 1 hr. interval with radio | |
• 1 sec. to 1 hr. interval without radio |
Calibration | Factory calibrated (NIST traceable) / Field calibration |
Battery Type | Type AA Lithium (field-replaceable) |
Battery Life | 6 months to 1 year (depending on usage) |
Clock Accuracy | 10 seconds per 24 hours (25ºC) |
Certification | ATEX (for intrinsic safety) |
FCC Class B digital device (Part 15 compliant) |
Pressure Data Loggers: MPIII & MPRF
Micropack III Pressure Data Logger-compact for precision
Controlling a manufacturing process requires accurate monitoring. And for that, your sensor must be close to the product being monitored, especially in food processing where one container is inside another. The ultra-small DataTrace® Micropack III (MPIII) Pressure Data Logger has a body measuring just 1.9 inches long. MPIII Pressure Data Loggers fit inside containers to get pressure readings from 0 PSIA (0 BAR) to 72.5 PSIA (5 BAR) with exceptional accuracy at temperatures up to 140°C (284°F). With their wide range and high precision, MPIII Pressure Data Loggers are not only well suited to canning and pouch processes, but an array of applications where pressure affects products and quality.
Operating Temperature | +25°C to +140°C |
Operating Pressure | 0 PSIA (0 BAR) to 72.5 PSIA (5 BAR) |
Temperature Accuracy | ± 0.25°C |
Pressure Accuracy | ± 0.45 PSIA (± 0.03 BAR) |
Size | Width: 18mm x Length: 48mm |
Weight | 55 grams |
Material | 316 stainless steel and sapphire IR windows |
Memory | |
8,000 time/temperature observations 8,000 time/pressure observations | |
Sample Rates | Operator programmable (1 second to 1 hour intervals) | Resolution |
0.001 PSI |
Calibration | Factory calibrated (NIST traceable) |
Battery Type | Lithium (field-replaceable) |
Clock Accuracy | 26 seconds per 24 hours |
Certification | ATEX (for intrinsic safety) |
MPRF Pressure Data Logger-real-time pressure monitoring
A recent addition to the complete DataTrace® RF Data Logging System, the MPRF Pressure Data Logger requires minimal training and features batch programming for fast and simple set up. It captures precise detail by collecting 8,000 data points – 4,000 each for pressure and temperature readings – and can be synchronized to the same clock with multiple MPRF loggers in any combination of logger type.
Operating Temperature | +25°C to +140°C |
Temperature Accuracy | ± 0.25°C |
Operating Pressure | 0 PSIA (0 BAR) to 72.5 PSIA (5 BAR) |
Pressure Accuracy | ± 0.3 PSIA (± 0.02 BAR) |
Range | 100 feet (30 meters) Line of Sight |
Radio Frequency | 2.4 GHz range ISM Band |
Size | Width: | 23.2mm |
Length: | 116mm | |
Weight | 103 grams | |
Material | 316 stainless steel and ULTEM or PCTFE |
Memory | 4,096 time/temperature/pressure observations and 8,192 in compressed data mode |
Sample Rates | Operator programmable |
• 5 sec. to 1 hr. interval with radio | |
• 1 sec. to 1 hr. interval without radio |
Calibration | Factory calibrated (NIST traceable) / Field calibration |
Battery Type | Type AA Lithium (field-replaceable) |
Battery Life | 6 months to 1 year (depending on usage) |
Clock Accuracy | 26 seconds per 24 hours (25ºC) |
Certification | ATEX (for intrinsic safety) |
FCC Class B digital device (Part 15 compliant) |
