Calibration Climatic Chambers
Kambic Calibration Climatic Chamber
The Kambic Calibration Climatic Chamber models allow you to calibrate a range of products, such as air temperature and relative humidity sensors. The high-quality chambers provide superior temperature & humidity control and uniformity. You can access the inside of the chamber via the convenient front access door and the sides provide easy access for cables & probes. Our calibration climatic chamber models provide the benefit of stable, silent & vibration free climatic conditions for optimum performance. All Kambic products offer world-class metrology performance and product features such as the user-friendly interface make these chambers highly beneficial at an affordable cost.
Withnell Sensors Ltd is the exclusive distributor and after sale service provider of Kambic climatic chambers in the UK & Ireland.
Kambic is a specialised manufacturer of all kind of laboratory and process equipment including high quality climatic chambers and controlled environment rooms, calibration baths, pass boxes and much more.

Independent Advice
We are always on hand to offer expert advice and technical support when you are making the decisions on which product would work best for you. Our technical sales team have experience with working with a range of clients on various projects. We can help you to select the right calibration climatic chamber to suit your requirements and our after sales care is outstanding.
Calibration Climatic Chamber Features
- Heated glass fronted observation window
- Touch screen-based new controller interface (upgraded model) historic graph advance settings options and RS-232, USB or Ethernet communication ports
- All exterior is galvanised and powder coated steel RAL-7035
- Door switch for open door alarm
- Height adjustable stainless-steel wire shelve, additional shelves if required
- Fan for internal air circulation
- Fully stainless steel inner chamber with all rounded corners
- Temperature controlled (heated) doors
- Red-eye software supplied free with all chambers
- Upgraded heavy duty closing mechanism with key lock
- 57 or 112L models
Available models:

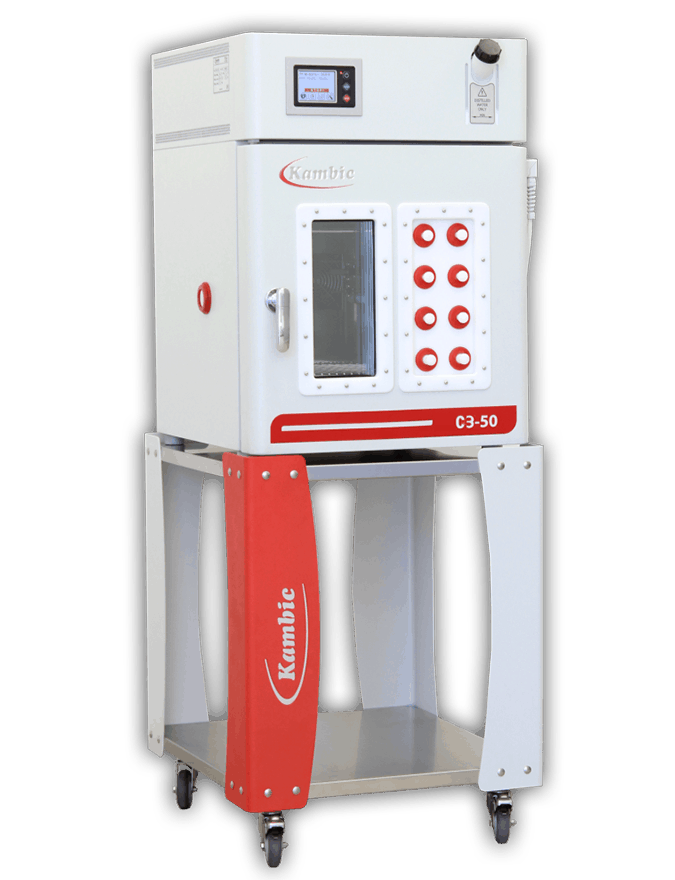

C3-50 | |
---|---|
Volume | 57L |
Temperature Range | +10 to +55°C |
Relative Humidity Range | 5% to 95% |
External dimensions (WxHxD) | 570 x 800 x 615mm |
Internal Dimensions (WxHxD) | 570 x 800 x 615mm |
Temperature stability (°C) | ± 0.02 °C |
Temperature Uniformity (°C) | 0.5 (reference to any point in chamber) |
Relative Humidity Stability (%) | ± 0.2 @ 21 °C, 50 % Rh (better than ± 0.8 full range) |
Relative Humidity Uniformity (%) | Less than 2 % (full range) |

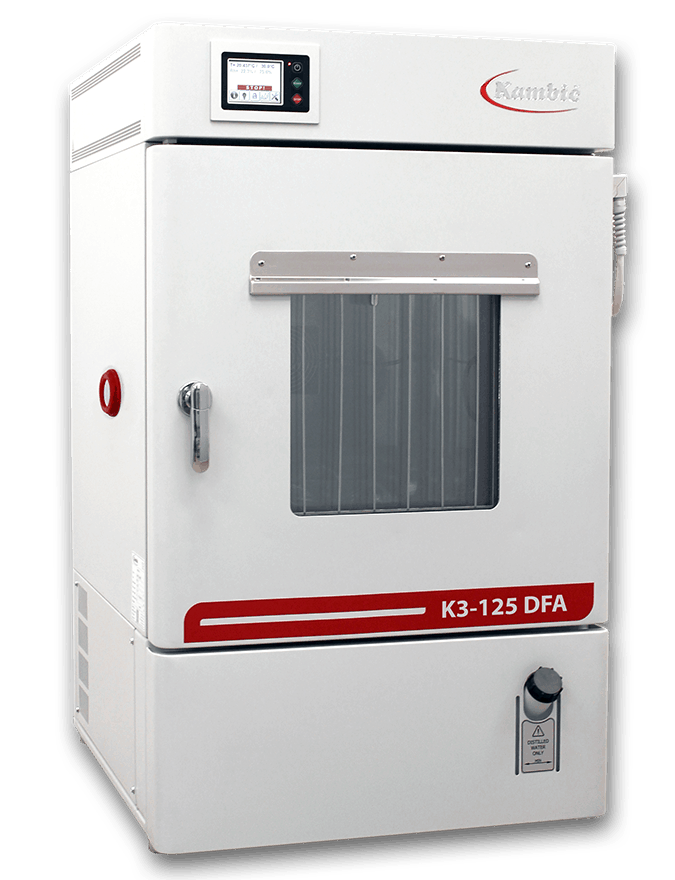

K3-125 DFA | |
---|---|
Volume | 112L |
Temperature Range | +5 to +60°C |
Relative Humidity Range | 5% to 95% |
External dimensions (WxHxD) | 670 x 1140 x 920mm |
Internal Dimensions (WxHxD) | 500 x 450 x 500mm |
Temperature stability (°C) | ± 0.06 @ + 0°C
± 0.05 @ + 15 °C, 75 % Rh ± 0.05 @ + 20 °C, 60 % Rh ± 0.08 @ + 30 °C, 65 % Rh ± 0.05 @ + 50 °C, 75 % Rh ± 0.05 @ + 50 °C, 15 % Rh |
Temperature Uniformity (°C) | ± 0.15 @ + 0 °C
± 0.25 @ + 15 °C, 75 % Rh ± 0.25 @ + 20 °C, 60 % Rh ± 0.40 @ + 30 °C, 65 % Rh ± 0.20 @ + 50 °C, 75 % Rh ± 0.20 @ + 50 °C, 15 % Rh |
Relative Humidity Stability (%) | ± 0.3 @ 20 °C, 60 % Rh (better than ± 0.5 full range) |
K3-90 | |
---|---|
Volume | 90L |
Temperature Range | -5 to +60°C |
Relative Humidity Range | 5% to 95% |
External dimensions (WxHxD) | 650 x 1223 x 793mm |
Internal Dimensions (WxHxD) | 480 x 460 x 411mm |
Temperature stability (°C) | ± 0.05 @ - 5°C
± 0.05 @ + 0°C ± 0.05 @ + 15°C, 75 % Rh ± 0.05 @ + 20 °C, 60 % Rh ± 0.08 @ + 30 °C, 65 % Rh ± 0.05 @ + 50 °C, 15 % Rh ± 0.05 @ + 50 °C, 75 % Rh |
Temperature Uniformity (°C) | ± 0.25 @ - 5 °C
± 0.20 @ 0 °C ± 0.25 @ + 15 °C, 75 % Rh ± 0.25 @ + 20 °C, 60 % Rh ± 0.40 @ + 30 °C, 65 % Rh ± 0.20 @ + 50 °C, 75 % Rh ± 0.20 @ + 50 °C, 15 % Rh |
Relative Humidity Stability (%) | ± 0.3 @ 20 °C, 60 % Rh (better than ± 0.5 full range) |
