Kaye Equipment Calibration

We offer a full range of calibration services for your Kaye equipment

Our engineers have many years of experience working with Kaye equipment, our Managing Director sold this product range throughout the UK and Ireland for over 25 years. Our service engineers have helped many customers with Kaye equipment calibration and support with various technical queries-if you need any help with your equipment then please don't hesitate to get in touch. We appreciate that some of our customers have a requirement to have their calibration performed on-site. Our engineers are field based so, upon customer request, we will try to accommodate field calibration. Our calibration method is similar to the method that we use in our lab in Lancashire, and replicates the method used by the manufacturer. Speak to one of our service engineers about the kind of service that best suits your needs

We can also offer UKAS accredited Kaye equipment calibration which is completed at our lab in Lancashire. This ensures that we can offer the best possible measurement uncertainties for your calibration. At the moment we are the only service provider in Europe able to offer an ISO 17025 accredited calibration of the Kaye Validator.

We have included some details below about what is included with our standard Kaye equipment calibration but if you have any questions then please do not hesitate to speak to one of team, our service engineers are always happy to help.



Kaye validation equipment rental, Kaye equipment calibration

Kaye Equipment Calibration-UKAS accredited

We have a dedicated page for information relating to UKAS Calibration for the Kaye Validator, SIM's & IRTD. Please look at our UKAS calibration page here

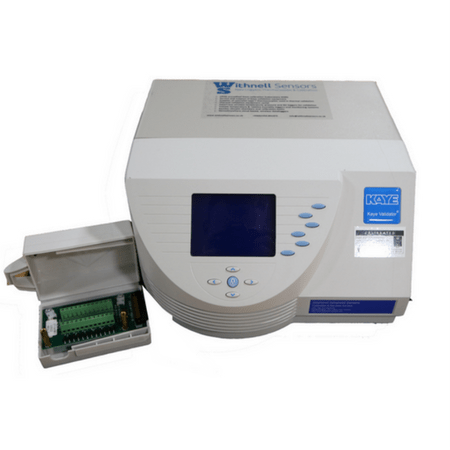

Validator 2000 and SIMS

Validator 2000 and Sensor Input Modules (SIMs) On Site Service

  • As Found and As Left, with adjustment
  • 36 Input Channel Test
  • Backup battery check
  • Internal Clock Battery Check and Free Replacement when required
  • Power Loss Test

HTR Bath

HTR Temperature Reference Baths

  • Full ramp cycle over the full temperature range
  • As Found calibration at 100, 200, 300 & 400 deg C
  • 4-point calibration with adjustment
  • As Left calibration at 50, 100, 150, 200, 250, 300, 350 & 400 deg C
  • Well to well uniformity
  • Stability check
  • Cut out test

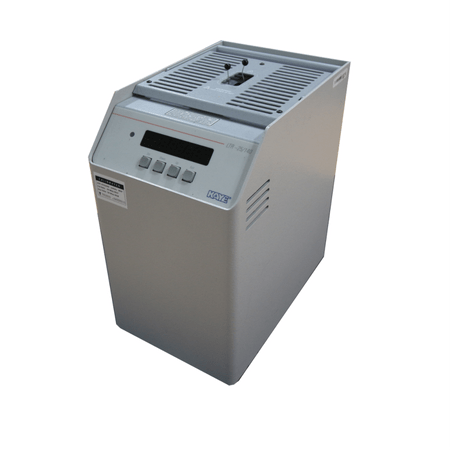

LTR Bath

LTR Temperature Reference Baths

  • Full ramp cycle over the full temperature range
  • As Found calibration at -25, 0, 75 & 140 deg C
  • 4-point calibration with adjustment
  • As Left calibration at -25, 0, 25, 50, 75, 100, 125 & 140 deg C
  • Well to well uniformity
  • Stability check
  • Cut out test

Kaye validation equipment rental, Kaye equipment calibration

Hire Equipment for your next project

Flexible Kaye rental packages available

Learn more about rental
Validator 2000

SRAM Component Failure

Withnell Sensors can help resolve this

Learn more
